86/BRZ SUSPENSION TUNING

Next Generation suspension MAX IV series will upgrade the drivability of the 86/BRZ to the next level!

Suspension that is safe and fun to drive.

We have done test over and over with our thorough analysis of MAX IV series. We developed to have a safe and still fun to drive suspension by analyzing the spring rate, damping force, balance and stroke of the front and rear. For the best function, we adopted the needle to pursuit best damping characteristics. To have a good handling and comfortable ride, it's very important to have the good low and mid-high RPM range stability.

2 Types of MAX IV, (GT & SP)

MAX IV series has 2 types, "GT" and "SP". "MAX IV GT" is for daily drive in the street and still go to circuit for a race. "MAX IV SP" is more for circuit drive than the daily street drive.

  • MAX IV GT Spec-A

    * Only for BRZ.

    MAX IV GT Spec-A

    【MAX IV GT Spec-A】

    Ultimate street suspension redesigned with a latest theory based on MAX IV GT

    "MAX IV GT Spec-A" was designed by eliminating the stereotype of aftermarket sporty suspension and reconsidering what the best aftermarket suspension is able to deliver sporty performance on a street. Experience its mild ride comfort and reliable drivability from the moment the accelerator is stepped on.

  • MAX IV SP

    This photo is the product for other vehicle.
    The front bracket for 86/BRZ is made of steel (black).

    MAX IV SP

    【MAX IV SP】

    The sport model to have a comfortable drive even in the winding road.

    MAX IV SP Specification

    Spring Rate(N/mm (kgf/mm)) = F:78(8)/R:78(8)
    Spring Free Length (mm) = F:170/R:150
    Upper mount = F: adjustable pillow / R: Fixed Pillow

  • MAX IV GT
    MAX IV GT

    【MAX IV GT】

    Awesome control and comfort ride on the street for a sporty drive. The new Max IV sporty suspension.

    MAX IV GT Specification

    Spring Rate(N/mm (kgf/mm)) = F:59(6)/R:39(4)
    Spring Free Length (mm) = F:170/R:170

    80230-AT001 (Pillow Upper Mount)more information
    80230-KT001 (Rubber Upper Mount)more information
  • HIPERMAX G

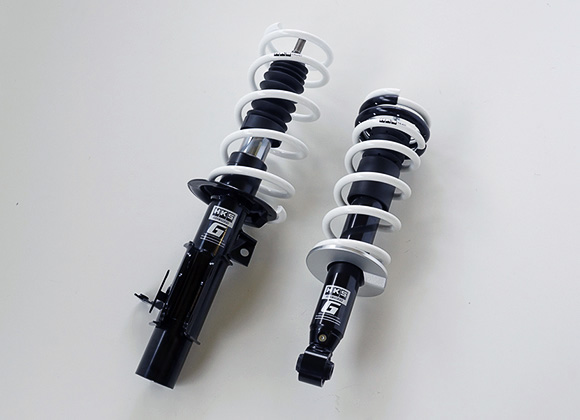

    HIPERMAX G

    【HIPERMAX G】

    - Obsession with High Quality -
    Integration of quality over cost principles of tuning parts and benefits and compatibility gained from OEM design.

    HIPERMAX G Specification

    Spring Rate(N/mm (kgf/mm)) = F:27(2.8) / R:44(4.5)
    Spring Free Length (mm) = Fixed
    Upper mount = F:Stock / R: Stock

    80260-AT003 (Early Model)more information
    80260-AT007 (Late Model)more information
