86/BRZ ENGINE TUNING

Developed by knowledge and experience acquired through D1 & time attack.

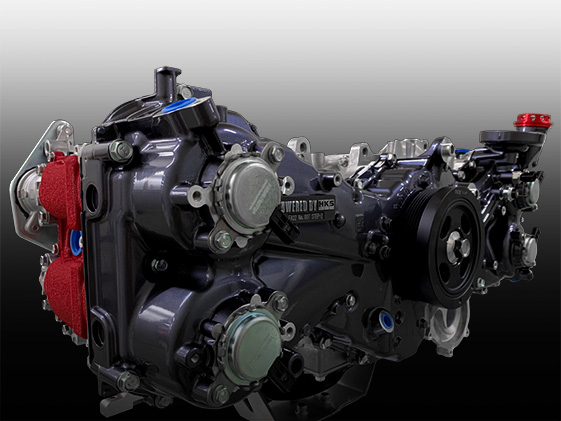

  • COMPLETE ENGINE FA20 2.1L STEP 0 HIGH-COMP
    COMPLETE ENGINE FA20 2.1L STEP 0 HIGH-COMP

    【COMPLETE ENGINE FA20 2.1L STEP 0 HIGH-COMP】

    HIGH-COMP complete engine handcrafted by the artisans with high-skills in FA20 2.1L kit for NA & SUPERCHARGER users

    more informaiton

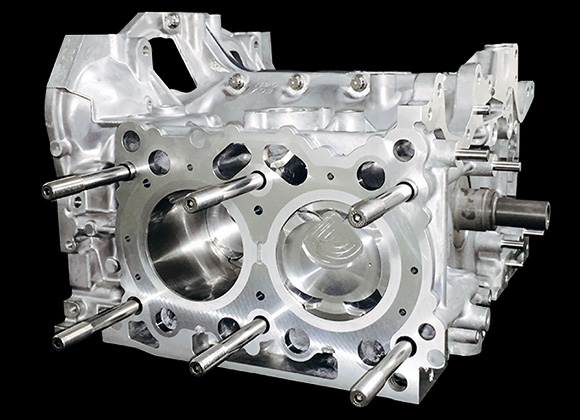

  • COMPLETE ENGINE FA20 2.2L STEP 1/2/3
    COMPLETE ENGINE FA20 2.2L STEP 1/2/3

    【COMPLETE ENGINE FA20 2.2L STEP 1/2/3】

    Engine parts that are developed and manufactured with the technologies that HKS has accumulated over a long time.
    The special unit assembled one by one by the skilled staff who has a lot of experience with racing engine manufacturing.
    Doesn't include intake plenum, exhaust manifold, fuel system and other auxiliaries.

    more informaiton

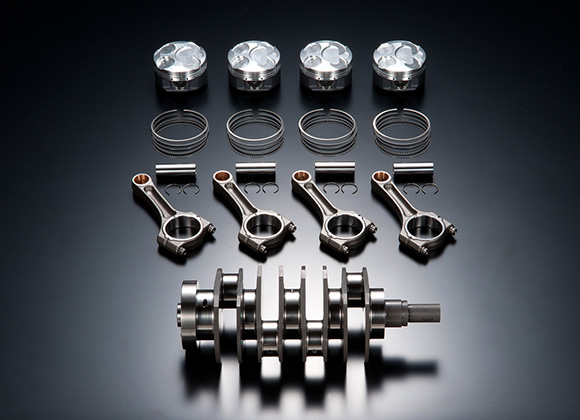

  • CAPACITY UPGRADE KIT FA20 2.1L
    CAPACITY UPGRADE KIT FA20 2.1L

    【CAPACITY UPGRADE KIT FA20 2.1L】

    This kit was designed exclusively for the FA20 engine by meticulous analysis and experiment. HKS delivers this kit with "Made in Japan" quality.
    High performance specifications withstanding 550(ps) - 50(kgf・m) !
    This kit is for people want to upgrade all the way including the engine internals.

    more informaiton

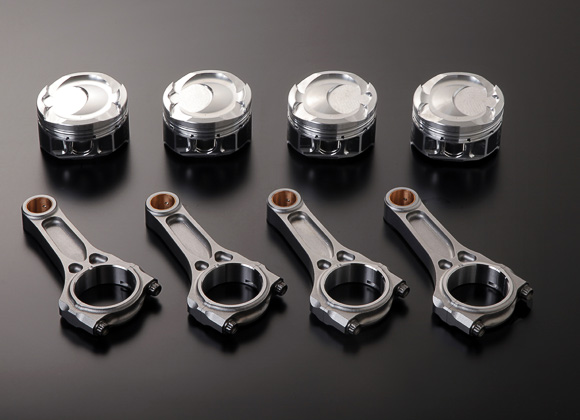

  • CAPACITY UPGRADE KIT FA20 2.1L LOW COMP
    CAPACITY UPGRADE KIT FA20 2.1L LOW COMP

    【CAPACITY UPGRADE KIT FA20 2.1L LOW COMP STEP1/STEP2】

    High boost tuning in the era of direct injection engines!

    The low compression type FA20 2.1L Kit is available for high boost tuning.
    Upgrading with forced induction is very common for the FA20 engine tuning.
    HKS has developed a highly durable low compression piston required to move onto the next tuning level

    more informaiton

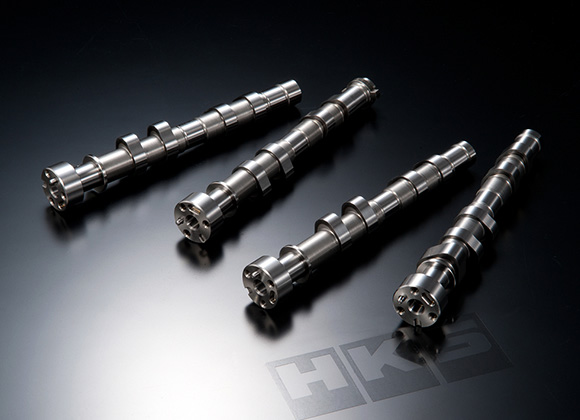

  • VCAMSHAFT
    VCAMSHAFT

    【V CAMSHAFT】

    Both NA and turbo-charged engine users can use this camshaft set.
    Overwhelming power increase can be felt in the high rpm range.
    Using the capacity upgrade kit together is recommended to achieve optimum performance and keep proper valve clearance.

    Applied Amore informaiton
    Applied B-Emore informaiton

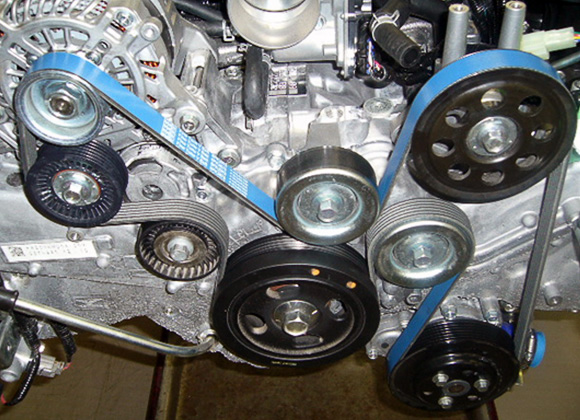

  • Fine Tune V Belt
    Fine Tune V Belt

    【Fine Tune V Belt】

    Increased durability at high temperatures which can be found in the engine bay of tuned vehicles.
    And increased performance in cold weather areas and conditions. Also lightweight with good friction tolerance properties means that excess tension is not required whilst anti sound properties reduces belt squeal.

    more informaiton
  • FA20 HEAD GASKET
    FA20 HEAD GASKET

    【FA20 HEAD GASKET】

    STOPPER TYPE HEAD GASKET

    New 1.0mm thickness gasket is released as an additional item to the existing 0.5mm & 0.7mm thick bore stopper type metal head gaskets for the FA20 engine of 86 & BRZ.
    This gasket provides higher bore sealing durability than stock.
    Use with HKS Capacity Upgrade Kit provides optimum performance of the supercharger kit.

    Thickness 0.5mmmore informaiton
    Thickness 0.7mmmore informaiton
    Thickness 1.0mmmore informaiton

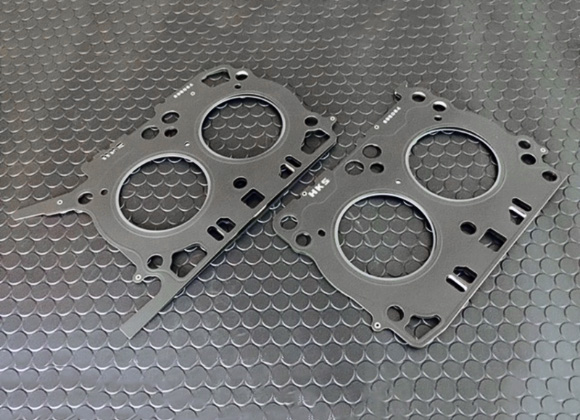

    GROMMET TYPE HEAD GASKET

    FA20 engine tuning through turbo and supercharging is becoming more and more popular. In these cases, many people will eventually experience the issue of head gasket failure.
    To address this, HKS is pleased to announce the release of a new grommet type head gasket which takes things a step further than the existing stopper type gaskets.

    Thickness 0.8mmmore informaiton
    Thickness 1.2mmmore informaiton

▲
