HKS

86/BRZ PARTS

When first 86/BRZ was introduced it has attracted a great deal of automobile industry attention. And HKS soon acquired vehicles and started developing. We have entered D1 grand prix since then and have developed many parts.
We HKS as a total tuning parts maker could provide different tuning parts of category together. Here are some Step-Up menus for your 86/BRZ tuning.

Which one do you prefer?

  • SUPERCHARGER

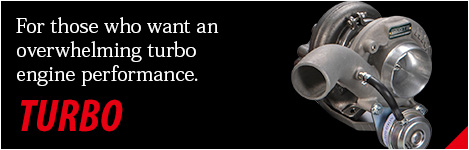

  • TURBO

HKS 86 (ZN6) / BRZ (ZC6) PARTS LINE UP

Code No. Product Name 2012/4~
2016/8
2016/8~ 2016/8~ Remark
MT/AT MT AT

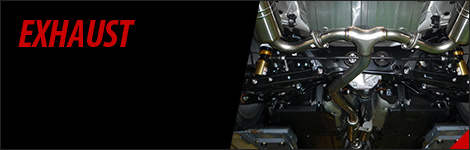

EXHAUST
●Muffler
32018-AT041V
LEGAMAX Sports S-Tail Main+Mid Pipe, Blue gradation exhaust tip
32018-AT041

LEGAMAX Sports S-Tail Main+Mid Pipe, SUS exhaust tip
32018-AT039
LEGAMAX Premium (main) × × Only main muffler
32018-AT058
LEGAMAX Premium (main) × Only main muffler (For the late model)
32018-AT040
LEGAMAX Premium
(main+mid-attachment)
Main+Mid Pipe
32016-AT123
Hi-Power SPEC-L II Main + Center pipe
Tail cover size:φ94 L=48, OPTION Tail Requirement (pcs):2
32016-BT001
Hi-Power SPEC-L No ground clearance change
32016-BT002
Hi-Power Muffler Titanium tail can slide (20mm)
・Compatible with inner silencer 3306-RA072 Note; Closed sound level under US measurement method is 95dB.
32016-BT003
Hi-Power Single Racing Version FR-S W/silencer Available only for overseas markets.
32016-CT001
Hi-power SPEC-L Limited in Quantity. Available Only for Overseas Markets
32018-AF009
LEGAMAX Sports (Dual) Only for BRZ × × ※Only for BRZ. Special garnish included.
(Modification of factory bumper required)
Not compatible with the late model.
●Exhaust Manifold
33002-BT001
SUS EXHAUST MANIFOLD
Scion FR-S
Available only for overseas markets.
●SUS Front Pipe
33004-BT002
SUS FRONT PIPE
Scion FR-S
Available only for overseas markets.
●Exhaust Manifold + Metal Catalyzer
33005-AT007
SUPER MANIFOLD with
CATALYZER GT-SPEC
【GT-SPEC】Exhaust manifold is integraged with Metal CAT. Use with a factory front pipe.
33005-AT006
SUPER MANIFOLD with
CATALYZER R-SPEC
Only for MT × × Only for 6MT. Front pipe with a straight type manifold and Metal CAT. Noise regulation is cleared only when installed with a factory exhaust system.
33005-AF018
SUPER MANIFOLD with
CATALYZER BOXER Spec
× This product includes only the exhaust manifold with catalyzer.
(Flash Editor is NOT included.)
●STAINLESS FRONT PIPE with Catalyzer
33004-BT003
STAINLESS FRONT PIPE

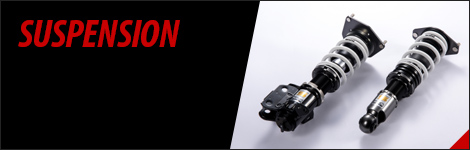

Suspension
80310-AT001
HIPERMAX R
80300-AT001
HIPERMAX S
80260-AT003
HIPERMAX G For the early model
80230-KT001
MAX IV GT ※Rubber upper mount for the front side.
80260-AT007
HIPERMAX G × For the late model. Note: For ZN6(86) registered
before Aug. 2016, this product does not meet the
safety standard due to insufficient height of fogs
and blinkers.
80250-AT001
MAX IV SP * Discontinued.
80230-AT001A
MAX IV GT 20 SPEC * Discontinued.
Technical Info: Front / Rear
Spring Rate: 5 / 5 (kg/mm)
Spring Length: 170 / 170 (mm)
Height: -17 / -16 (mm)
Upper Mount: Pillow-ball / Rubber
80230-AF012V
MAX IV GT Spec-A * Disconined.
Note: For ZN6(86) registered before Aug. 2016,
this product does not meet the safety standard
due to insufficient height of fogs and blinkers.
80230-AT001
MAX IV GT * Discontinued.

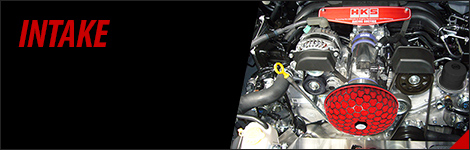

Intake
70020-AT115
Racing Suction
70018-AT006
Premium suction kit × Suction Pipe + S. Hybrid Filter
70025-AT001
GT Suction Not
confirmed
Not
confirmed
Note: S. Hybrid Filter is not included in GT Suction.
70026-AT001
Carbon Suction Kit ×
70999-AT002
AIR INTAKE DUCT
70017-AT132
SUPER AIR FILTER × × 6MT
70017-AT120
SUPER AIR FILTER ×
70017-AT127
SUPER AIR FILTER × × * Discontinued.
6MT

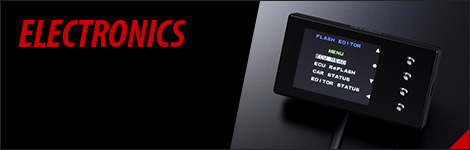

Electronics
42015-AT104
FLASH EDITOR For initial setting, Windows PC (Windows7,8,8.1,10)
and USB cable (A-micro B) are required.
42015-KT001
FLASH EDITOR Type-T Available only for Thailand and Taiwan markets.
45002-AT013
VAC type CFT
44009-AK003
OB-LINK TYPE-FA20 * Discontinued.
Only for 86/BRZ. OB-LINK unit, smart phone
or tablet, and apps(iOS 6.1 or later & Android 2.33
or later) are required.
44009-AK002
OB-LINK TYPE-001 * Discontinued.
OB-LINK unit, smart phone or tablet, and apps
(iOS 6.1 or later & Android 2.33 or later) are required.

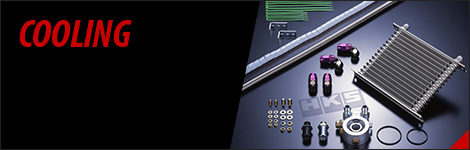

Cooling
15004-AT012
S TYPE OIL COOLER KIT
(Install to Inner side of Fender)
× For GT Supercharger system Pro Kit compatible.
Need radiator support and resin cover modification.
15004-AT011
S TYPE OIL COOLER KIT
(Install to Inner side of Fender)
× × For GT Supercharger System Pro Kit.
Not compatible with BRZ equipped with an automatic transmission.
Modification of a radiator support and resin cover is required.
15004-AT010
S TYPE OIL COOLER KIT For NA engine. Minor modification (bending an A/C pipe) is required.
Supercharger
12001-AT012
GT2 SUPERCHARGER SYSTEM
GTS7040L Pro kit
Front bumper
must be
modified.
Engine management part (ECU, etc.) is required.
FuelUpgrade Kit (14007-AT001) is available.
13001-AT007
Intercooler Upgrade Kit A kit upgraded from the previous kit. Some factory parts are required in order to install this kit.
14007-AT001
Fuel Upgrade Kit Flash Editor for this kit is not included. To use with
Flash Editor, setting by HKS Power Writer shop is
required. (Not compatible with AT vehicles.)
12002-KK001
PULLEY UPGRADE KIT Available only for overseas markets.
12002-KK002
VERSION UP KIT to
GT S/C SYSTEM FR-S
Available only for overseas markets.

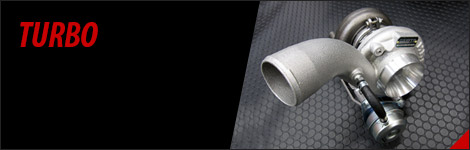

Turbo
11001-AT005
BOLT ON TURBO KIT × × For MT, Extension with CAT.
* Compatibillity with the late model is confirmed with JDM model.
* Compatible with BRZ.
11001-KT001
BOLT ON TURBO KIT × × CATless Extension, Compatibility with the late model
is confirmed only with JDM model.
11999-AT001
OIL PAN For BOLT ON TURBO
11999-AT002
Extension with catalytic converter For use with Bolt ON Turbo Kit
14011-AT001
EXHAUST JOINT PIPE For use with Bolt ON Turbo Kit
Size: φ60
Engine
23011-AT003
COMPLETE ENGINE
FA20 2.2L STEP1

23011-AT004
COMPLETE ENGINE
FA20 2.2L STEP2

23011-AT005
COMPLETE ENGINE
FA20 2.2L STEP3
To be released July 2020
The above FA engine camshaft is designed fot FA20 (A to D).
To be confirmed for later models.
23011-AT006
COMPLETE ENGINE
FA20 2.1L STEP 0 HIGH-COMP

21004-AT002
FA20 2.1L kit Forged Piston Kit + I-beam Con'rod + Forged Crankshaft
21004-AT003
FA20 2.1L KIT (LOW COMP)
STEP1
FORGED PISTON KIT + I-BEAM CON'ROD + FORGED CRANKSHAFT
21004-AT004
PISTON FULL KIT FA20 2.1L
LOW-COMP STEP2
Forged Low-comp Piston Co + I-beam Billetn'rod
+ Forged Crankshaft
21003-AT003
FORGED PISTON KIT Forged Piston + Ring + Pin
21003-AT004
FORGED PISTON KIT
(LOW COMP)
FORGED PISTON + PISTON PIN + PISTON RING
23004-AT001
I-BEAM CON'ROD Forged I-beam Con'rod
23004-AT002
CON'ROD SET FA20 I-BEAM
STEP2
I-beam billet type, 22mm pin, Only for 2.1L Kit
23006-AT002
FORGED CRANKSHAFT Stroke: 90mm
23001-AT002
Strengthen metal head
gasket kit t=0.5
Fro NA engine. Gaskets for LH & RH are included.
Opposed bead stopper type
23001-AT003
Strengthen metal head
gasket kit t=0.7
For turbo tuned engine. Gaskets for LH & RH
areincluded. Opposed bead stopper type
23001-AT004
Strengthen metal head
gasket kit t=1.0
For turbo tuned engine. Gaskets for LH & RH
are included. Opposed bead stopper type
23002-AT001
GROMMET TYPE HEAD GASKET t=0.8
23002-AT002
GROMMET TYPE HEAD GASKET t=1.2
22002-AT005
Camshaft IN & EX SET
IN 260°EX 266°
× × For 86/BRZ Applied A Model.
HKS Capacity Upgrade Kit (21004-AT002) must be
used together.
22002-AT006
Camshaft IN & EX SET
IN 260°EX 266°
× For 86/BRZ Applied B -E Models.
HKS Capacity Upgrade Kit (21004-AT002 or
21004-AT003) is required.
24996-AK030
FINE TUNE V-BELT/
6PK2075

Power Train
26010-AT001
LA clutch kit Only for MT Under
development
Single Plate
Engine/Oil Filter
52001-AK154
SUPER ZERO RACING 0w20 4L
52001-AK109
SUPER OIL Premium
0W-25 20L
*Discontinued.
Equivalent to a stock viscosity
52001-AK108
SUPER OIL Premium
0W-25 4L
*Discontinued.
Equivalent to a stock viscosity
52001-AK107
SUPER OIL Premium
0W-25 1L
*Discontinued.
Equivalent to a stock viscosity
52009-AK005
OIL FILTER (M20) TYPE-1 M20×P1.5
24003-AK002
Billet Oil Filler Cap Cap's color: Red
Brake Fluid/Gear Oil/Diff Oil
52004-AK003
G-900 75W-90 1L Gear oil for 6MT Stock oil: MG Gear Special II 75w90
52004-AK003
G-900 75W-90 1L Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use.
52004-AK005
G-1000 75W-100 1L Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use.
52004-AK007
G-1200 75W-120 1L Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use.
52004-AK009
G-1400 75W-140 1L Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use.
Spark plug
50003-M50HL
SUPER FIRE RACING M50HL 4 plugs required. Stock: #9 DENSO ZXE27HBR8
50003-M45HL
SUPER FIRE RACING M45HL 4 plugs required. Stock: #9 DENSO ZXE27HBR8
Ohters
70026-AT013
Carbon Engine Cover *Late models, specifically those manufactured from 2016 and onwards,
including Applied E models,
are not compatible with manual transmission (MT).
70026-AT015
CARBON FUSE BOX COVER
51007-AK401
HKS CAR FLOOR MAT For RIGHT-hand drive car.
Includes 2 pcs for the front.
70027-AT001
NANO CABIN FILTER
15009-AK005
RADIATOR CAP N-type
108kPa (1.1kgf/cm2)
50004-AK002
Plug Wrench Set for FA20/24
