86/BRZ EXHAUST TUNING

High response and cool sound make the FA20 even better with these HKS exhaust systems.

  • * Actual parts could be different from the photo.

    Cool appearance and cool sound

    We have analyzed the layout and the engine itself to produce most advanced exhaust system for 86/BRZ by the HKS know-hows. We made it highly efficient, too and still have quiet sound. The design of the muffler for rear appearance is sporty and beautiful.

    Advantage with the light weight

    Nowadays, the automobiles are getting heavier for the safety matter. But 86/BRZ is very light weight sport car. It’s usually difficult to cut the weight than produce more power. But we made much lighter parts than the stock exhaust system to have a better performance on the road.
    * Hi-Power SPEC-L is 50% lighter than the stock

    HKS STEP-UPS

    Changing the muffler of the 86/BRZ make it fun to drive, but as a total tuning company, HKS offers perfect tuning solutions from muffler to engine parts. With our newest technology developed from the D1 racing project and laboratory, we make a most advanced 86/BRZ in the tuning market.

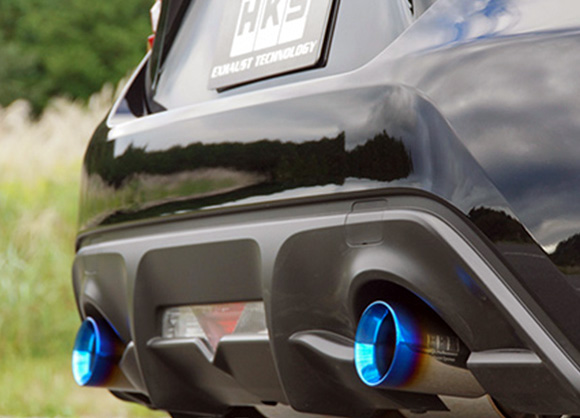

LEGAMAX Sports【LEGAMAX Sports】

  • For both quietness and low pressure.

    For both quietness and low pressure.

    Specification

    Material: SUS304
    Pipe diameter: φ60→50×2
    Tail diameter: φ100×2
    Etc.: Center pipe set/compliant for stock bumper

  • Perfect Muffler of "Silence" & "High Power" Created by HKS

    Specification

    Material: SUS304
    Pipe diameter: φ60→50×2
    Tail diameter: φ100×2
    Blue gradation exhaust tips. Compatible with the late model.

  • Exhaust System with Dual Exhaust Tips for "Subaru BRZ"
    Ideal for those who wish "gently" tuned car with "low exhaust pressure" and "quiet vehicle interior".

    Specification

    Material: SUS304
    Pipe diameter: φ60→50×2
    Tail diameter: φ80×2 L&R
    Only for BRZ. Special garnish is included. (Modification of stock bumper is required.) Not compatible with the late model.

Hi-Power SPEC-L【Hi-Power SPEC-L II】

  • HKS cutting-edge technology in ZN6/ZC6 stainless steel exhausts: 45% of the stock exhaust weight!

    Specification

    Material: SUS304
    Pipe diameter: φ60→φ54→60
    Tail diameter: 94
    Tail cover size:φ94 L=48, OPTION Tail Requirement (pcs):1

  • Weight reduction, low exhaust pressure, improved drivability and exhaust efficiency.

    Specification

    Material: SUS304
    Pipe diameter: φ60.5→φ50.8×2
    Tail diameter: 94 L&R
    Tail cover size:φ94 L=48, OPTION Tail Requirement (pcs):2

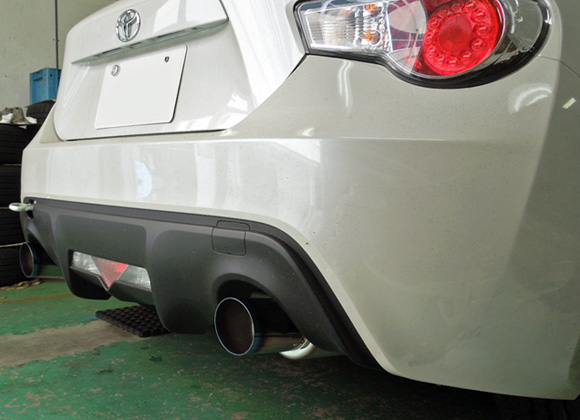

Hi-Power SPEC-L【Hi-Power SPEC-L】

  • "Lightweight" is the development concept. Stock is 18.0kg but HKS for only 10.4kg!

    Specification

    Material: SUS304
    Pipe diameter: φ60.5→φ50.8×2
    Tail diameter: φ97 (Ti)
    No ground clearance change.

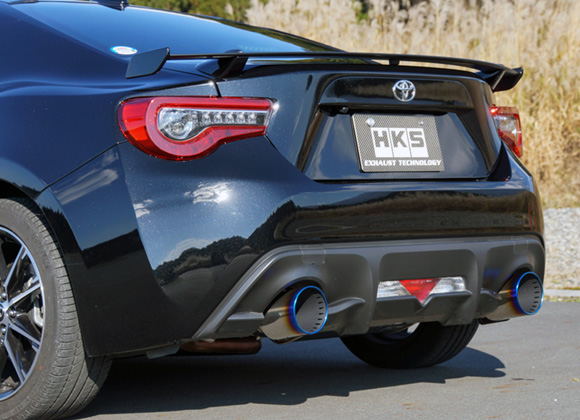

LEGAMAX Premium【LEGAMAX Premium】

  • New slit tail design muffler gives you stylish appearance and sporty sound.

    Specification

    Material: All SUS304
    Pipe diameter: φ60-φ54×2
    Tail diameter: φ124 left-right output w/ slit tail
    Etc.: New 2010 Noise regulation certified for both of; "Main + Center pipe" & "Main only"

    Main + Center pipemore information
  • Only for Late Model with Blue Gradation Exhaust Tips.

    Specification

    Material: SUS304
    Pipe diameter: φ60-φ54×2
    Tail diameter: φ124 double-sided blue gradation tips
    Etc.: Only for the late model. Main muffler only

    Main only (For the late model)more information

Hi-Power【Hi-Power】

  • Hi-Power Muffler Racing Ver.2 with silencer
    75mm straight through low back pressure design!
    A large-size silencer eliminates uncomfortable exhaust resonance!

    Specification

    Material: SUH409
    Pipe diameter: φ75
    Tail diameter: φ119 Ti

  • Hi-Power Muffler Racing Ver.1 without silencer

    Specification

    Material: SUH409 (Main Silcencer SUS304)
    Pipe diameter: φ75
    Tail diameter: φ97 Ti
    Etc.: Compatible with inner silencer 3306-RA072
    Note; Closed sound level under US measurement method is 95dB."

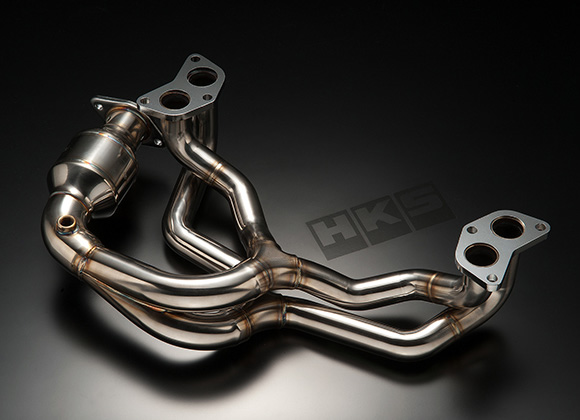

SUPER MANIFOLD with CATALYZER GT-SPEC【SUPER MANIFOLD with CATALYZER
GT-SPEC】

  • SUPER MANIFOLD with CATALYZER GT-SPEC Exhaust Manifold is the key to the 86/BRZ power upgrade. The stock manifold has the catalyzer which prevents from better performance. But HKS catalyzer can provide more power because of the less resistance and better cleaning exhaust which passed the Japanese gas regulation.

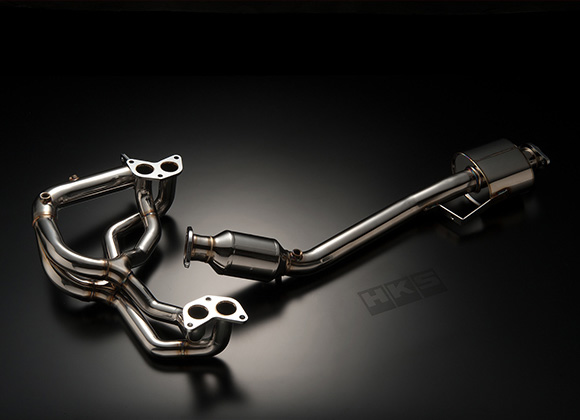

SUPER MANIFOLD with CATALYZER R-SPEC【SUPER MANIFOLD with CATALYZER
R-SPEC】

  • SUPER MANIFOLD with CATALYZER R-SPEC is more advanced and upgraded product of SUPER MANIFOLD with CATALYZER GT-SPEC.

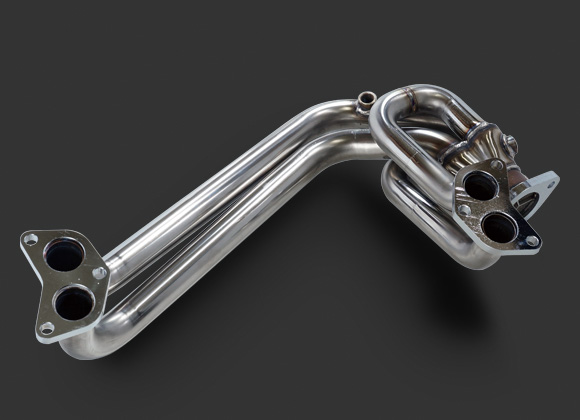

SUPER MANIFOLD with CATALYZER BOXER-SPEC【SUPER MANIFOLD with CATALYZER
BOXER-SPEC】

  • The main features of this product are the optimized bank pipe diameter for the right and left sides and vehicle specific catalyzer to manage both the exhaust gas and engine output. This product promises to be an exquisite piece for "Subarists" who know the exhaust sound to enjoy. The durability of this product was tested to guarantee it.

SUPER EXHAUST SYSTEM【SUPER EXHAUST SYSTEM】

  • Full exhaust system of “SUPER MANIFOLD with CATALYZER R-SPEC” that has a new layout design of a straight catalyzer at the exhaust manifold, with front pipe with HKS metal catalyzer, and super-light and high-efficient “Hi-Power SPEC-L” Compatible for Japan exhaust regulation and acceleration noise regulation.

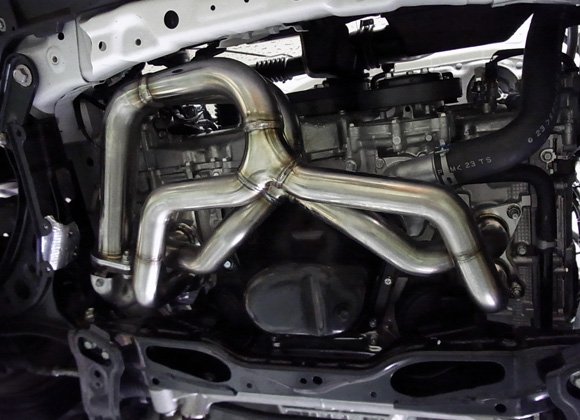

STAINLESS EHAUST MANIFOLD【STAINLESS EHAUST MANIFOLD】

  • The Stock exhaust manifold was designed by the 4-2-1 type layout for a better performance for a lower engine speed torque. Because the first catalyzer is mounted at the exhaust manifold, exhaust pulsatory motion makes the exhaust gas to pull back to the pipe at middle RPM range. It causes a loss of output by behaving as an exhaust gas recirculation.

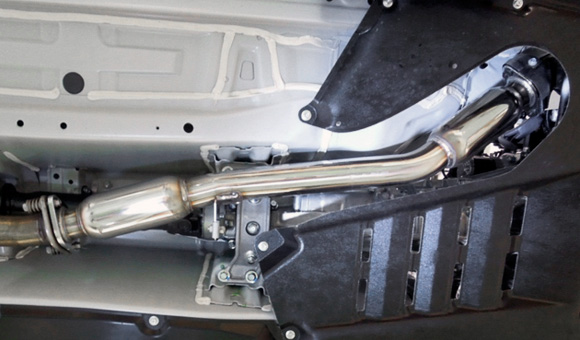

STAINLESS FRONT PIPE【STAINLESS FRONT PIPE】

  • The main part for the high output is the exhaust manifold shown on the right graph.
    We recommend having a total full straight exhaust tuning by having more power by changing the muffler and exhaust manifold and tune the sound with the front pipe.
    * If the exhaust manifold is changed, the engine check light might be turn on for a certain combination. So the muffler + front pipe combination is an effective choice.
