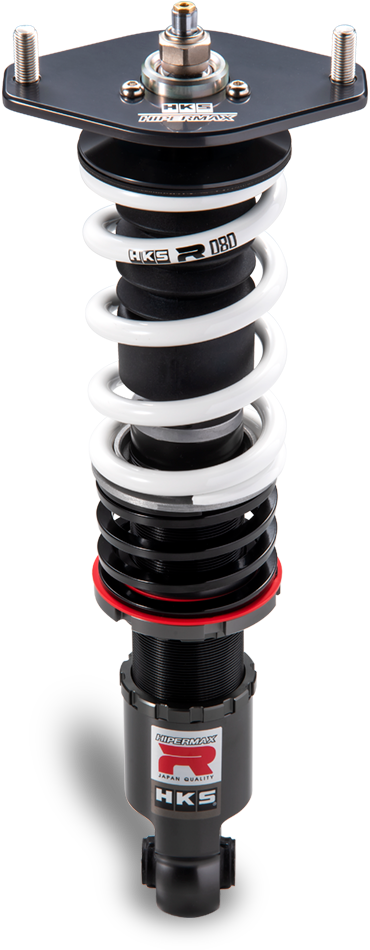

HIPERMAX R

HIPERMAX R

The HIPERMAX R Series has evolved all of handling, traction, and ease of fit to a new series by concentrating the technological capabilities cultivated over the past 9 years since the launch of MAX IV SP. The HIPERMAX R Series has achieved overwhelming performance that is unrivaled by any other brand.

HIPERMAX R

  • Inverted
    (for Strut) *1
    Single Tube
  • 30 levels
    Adjustable
    Damping
  • Shock-body
    Length Adjustable
  • Pillow Ball
    Upper Mount
  • HIPERMAX Exclusive
    Spring Retainer
  • Dual
    Preload Valve
  • HIPERMAX Exclusive
    "SRF"
    (Super Response Fluid)
  • HIPERMAX Exclusive
    "LVS"
    (Low Vibration Spring)
  • Specification
    Changeable
  • Overhaul
    Available
  • 2-year or
    40,000 km
    warranty

*1 Excluding some models

  • Inverted
    (for Strut) *1
    Single Tube
  • 30 levels
    Adjustable
    Damping
  • Shock-body
    Length Adjustable
  • Pillow Ball
    Upper Mount
  • HIPERMAX Exclusive
    Spring Retainer
  • Dual
    Preload Valve
  • HIPERMAX Exclusive
    "SRF"
    (Super Response Fluid)
  • HIPERMAX Exclusive
    "LVS"
    (Low Vibration Spring)
  • Specification
    Changeable
  • Overhaul
    Available
  • 2-year or
    40,000 km
    warranty

*1 Excluding some models

HIPERMAX R specification

■ HIPERMAX R Special Equipment

HIPERMAX R Exclusive newly developed oil "SRF (Super Response Fluid)"

Special high-viscosity oil that is resistant to heat sagging has been developed. Damping starts up from a very low speed range, resulting in reliable handling, great damping and high stability.

HIPERMAX R Exclusive High-Strength Spring "LVS(Low Vibration Spring)"

Newly developed special spring for high-strength wire that is ideal for sports driving. Provides excellent response and smooth ride.

Spring Retainer

Retainer on top of spring is standard equipment. This eliminates side forces and lowers friction. Stability is improved by following changes in load.

■ HIPERMAX R Core Technology

Dual PVS: Dual Preload Valve System

Features the Dual Preload Valve System originally designed for the HIPERMAX S. By carefully selecting valve shims for each vehicle model, the settings are tailored to the vehicle to provide direct handling and reliable stability.

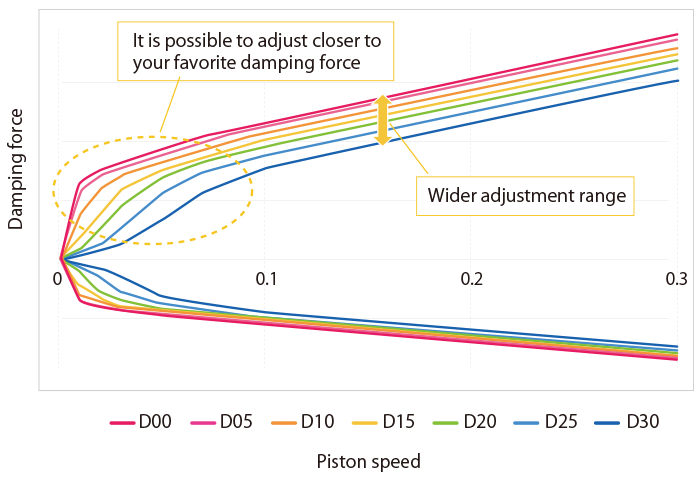

WR Needle: Wide range damping force adjustment mechanism

The improved shape of the needle expands the oil relief channel. Each step of the 30 steps adjustment is now more prominent. Having softer adjustment options gives more options for street driving.

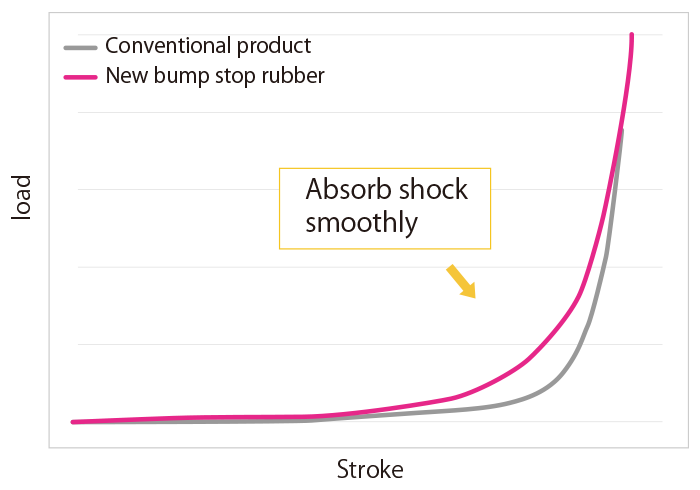

ADVANCED BUMP RUBBER

The advanced bump rubber newly featured for HIPERMAX S is utilized.
The shape aims for an early bump touch, gradually damping the load and suppressing abrupt changes in movement.

Single Tube System

The Mono-Tube design of the HIPERMAX series is adopted. The structure allows the gas and oil chambers to be separated, and the use of a large-diameter piston provides high quality and stable damping force characteristics.

オーバーホール可能

Inverted Type Damper for Strut Type

Firm rigidity against stress has been achieved. It works to the advantage of various performances when driving, and provides excellent handling and ride comfort.

PNE Coating

Prevents sticking due to rust, which is the bottleneck of full-length adjustable dampers. Also, the smooth surface reduces the force required for vehicle height adjustment.

Pillow Upper Mount

The genuine rubber upper eliminates unnecessary movement, making more precise and sharper handling.

"KODAWARI" of Exterior: Chamfered Upper Mounts

The aluminum upper mount has been chamfered by machining to evolve the beauty of the product. The machining process was increased to improve the feel and appearance of the product.

"KODAWARI" of Exterior: Laser Marking

The logo expresses a sense of luxury through the delicate characters created by laser marking, which cannot be expressed by pad printing.

Comparison chart

HIPERMAX R HIPERMAX S HIPERMAX G
Single Tube Single Tube Single Tube
Damper Force
30 step Adjustment 		Damper Force
30 step Adjustment		 Damper Force
Fixed Type
Fully Adjustable Type Fully Adjustable Type Genuine Replace Type
Inverted Type
(Only for Strut Type)		 Inverted Type
(Only for Strut Type)		 Inverted Type
(Only for Strut Type)
HIPERMAX R Exclusive
Newly Developed Oil
"SRF (Super Response Fluid)"		 Special Oil Special Oil
PNE Coating PNE Coating PNE Coating
Dual PVS Dual PVS ―
Aluminum Bracket
(Excluding some models)		 Aluminum Bracket
(Excluding some models)		 ―
Pillow Ball Upper Mount
(Spring retainer is standard)		 Reinforced Rubber Upper Mount
(Pillow Upper for some models)		 ―
ADVANCED Bump Rubber ADVANCED Bump Rubber ―
WR Needle WR Needle ―
HIPERMAX R Exclusive Spring
"LVS(Low Vibration Spring)"		 HKS Original Spring Offset Springs
(Only for Front)
Specification changeable Specification changeable ―
Overhaul Available Overhaul Available ―
2-year or
40,000 km warranty		 3-year or
60,000 km warranty		 3-year or
60,000 km warranty

Choose- Choose your best HIPERMAX-

HKS suspension generates optimum damping force, delivers optimum traction in any driving situation and responds linearly to any road conditions to achieve both ride comfort and driving performance.

  • HIPERMAX R

    For those who want to focus on sports driving performance on the race track, but do not want to sacrifice driving comfort in everyday use

  • HIPERMAX S

    For those who desire a higher grade of "driving comfort" that is enjoyable and comfortable on any stage

  • HIPERMAX G

    For those who wish to enjoy an overwhelming sense of quality that is different from the stock, but comfortable like them.

▲
