SUSPENSION

Discontinued.

  • single tube
  • 30 step adjusable damping
  • all adjustable
  • special oil
  • coil spring
  • pillow upper mount
  • inverted strut type only
  • specification changable
  • overhaul available

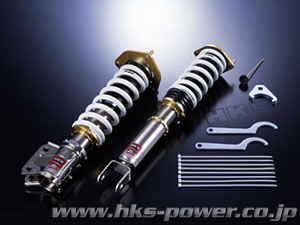

HIPERMAX III SPORT 09SPEC

[HIPERMAX III SPORT 09 Spec]

The newly developed Hiper Linear piston direct feeling as the street pure sport suspension.

High end model of street sport suspension for high grip radial tyres. Based on HKS' single tube technology that is proven for motorsports, HLP(Hiper Linear Piston) was newly developed. HLP has linear characteristic that damping force increases in proportion to piston speed. This linear characteristic helps to transfer information on tyre, road surface and traction. It enables direct feeling during sport driving.

* Discontinued.PRODUCT LINE UP

HIPERMAX III SPORT 09 SPEC is...

"09SPEC" is the evolution model of HIPERMAX III sport that is high performance suspension for high grip radial tyre. Based on HKS' single tube technology that is proven for motorsports, HLP(Hiper Linear Piston) was newly developed. HLP has linear characteristic that damping force increases in proportion to piston speed. This linear characteristic helps to transfer information on tyre, road surface and traction. It enables direct feeling during sport driving. Wide adjustment range of damping force of HIEPRMAX III sport 09SPEC enables suitable settings for various situations from street to circuit driving.

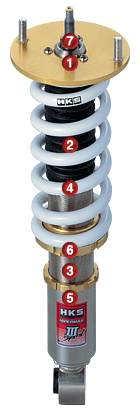

1.Pillow ball upper mount

Proven NMB spherical bearing enables quick handling.

2.Dust boots

It protects shaft from incoming stones.

3.Single tube type / Height adjustable lower bracket

Single tube type for high driving performance and ride height adjustable lower bracket to have best styling. These mechanism enables smooth & comfortable ride as well as ideal styling.

4.φ65 Straight spring

Proper spring rate is selected for each vehicle model. It is strong against performance drop and metal fatigue.

5.HLP (Hiper Linear Piston)

Large capacity piston with linear characteristic pursuits great driving feeling.

6.Aluminume lock nut. ride height nut

Lightweight and anti-corrosion.

7.30 step damping force adustable mechaanism

30 steps adjustable mechanism enable

8. 2 Years / 40,000km Limited Warranty

The enhanced durability of suspension components allows 2 years/40,000km warranty.

Features For street use. Reinforced rubber upper mount. Special oil. Pillow ball upper mount is selectable.
(Pillow upper only for inverted type.)
Structure Single tube type
Ride height
adjustment mechanism
Height adjustable lower bracket
Damping force
adjustment mechanism
30 steps adjustment function
Case Nickel coating
Spring Straight
*Special spring of rear suspension required for some vehicles.
