R35 GT-R CUSTOMIZED PARTSHigh power high performance high quality
HKS has been bringing out the potential of R35 GT-R. HKS develops from basic parts such as exhaust and suspension to high-performance parts such as turbo and engine parts, and we are R35GTR professionals. HKS has 4 types of a turbo, those turbos have completed the "Symmetry Layout" which has been considered difficult, and exhibit high efficiency and overwhelming performance. HKS can commit to any request from the R35GTR owner.
R35 GT-R PARTS CATEGORY
HKS GT-R(R35) PARTS LINE UP
| Code No. | Products | Remarks |

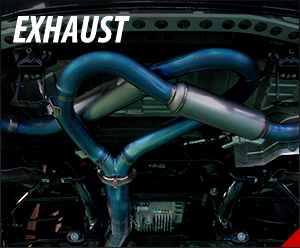

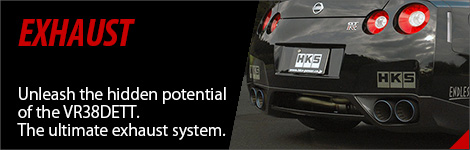

| EXHAUST | ||
|---|---|---|
| 31029-AN010 | Super Turbo Muffler | Only compatible with DBA-R35 11/2011 - 6/2016 *Not applicable for models CBA-R35 from 12/2008 to 10/2010, DBA-R35 from 11/2010 to 10/2011, DBA-R35 from 7/2016 to 5/2019 and 4BA/R35 from 6/2019 Not compatible with all model years of GTR-NISMO. |
| 31025-AN005 | SUPERIOR specR | Not applicable to GT-R Nismo. Vehicles released after 2010/11 require modification of the stock aluminum air guide plate. Applicable only to JDM "Pure Edition" for 2017 models Not compatible with all model years of GTR-NISMO. |
| 31021-AN010 | LEGAMAX Premium | Not applicable to GT-R Nismo. Vehicles released after 2010/11 require modification of the stock aluminum air guide plate. Applicable only to JDM "Pure Edition" for 2017 models Not compatible with all model years of GTR-NISMO. |
| 31021-KN001 | LEGAMAX Premium | Flux Welding Type Not compatible with all model years of GTR-NISMO. |
| 31008-KN001 | RACING MUFFLER | Ver.1 without silencer |
| 31008-KN002 | RACING MUFFLER | Ver.2 with silencer |
| 33005-AN005 | METAL CATALYZER | Make to order item For 485PS (After minor change) |
| 33004-KN001 | SUS CENTER PIPE (CATALYZER LESS, w/ SILENCER) |
Only for race use. Silencer included |
| 33004-KN002 | SUS CENTER PIPE (CATALYZER LESS) |
Only for race use. Silencer not included |
| 34005-AN001 | SUPERIOR FINISHER | * To be discontinued. |
| 31025-AN006 | 3SX MUFFLER | * Discontinued. Model year 2007-2010 |

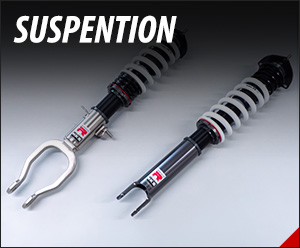

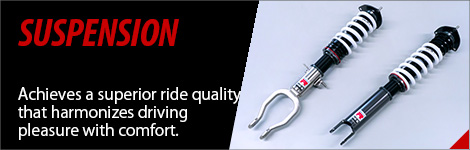

| SUSPENSION | ||
|---|---|---|
| 80310-AN001 | HIPERMAX R | |
| 80300-AN001 | HIPERMAX S | |
| 80250-AN001D | HIPERMAX MAX IV SP DRAG | * Discontinued |
| 80250-AN001 | HIPERMAX MAX IV SP | * Discontinued |
| 80230-AN001 | HIPERMAX MAX IV GT | * Discontinued |
| 80280-AN001 | HIPERMAX Touring | * Compatibles with late 2015 model. |

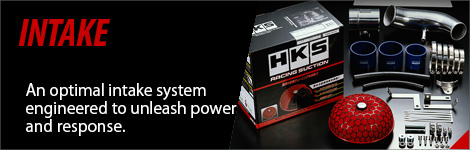

| INTAKE | ||
|---|---|---|

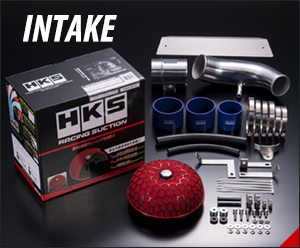

| 70020-AN110 | RACING SUCTION (FULL KIT) |
Kit include RACING SUCTION(70020-AN107) + Premium Suction(70018-AN007) |
| 70020-AN107 | RACING SUCTION | replacement the air filter box |
| 70018-AN007 | Premium Suction | Replacement the air inlet pipe between the stock air filter box and the compressor housing |
| 70017-AN105 | SUPER AIR FILTER | include 2 peaces |

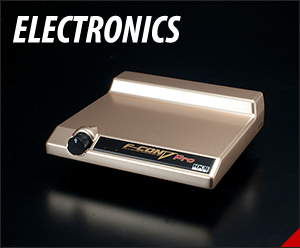

| ELECTRONICS | ||
|---|---|---|
| 42002-AN010 | F-CON HARNESS NP5-21 | |
| 44009-AK001 | OB-LINK | |
| 45002-AN008 | VAC Type GT-R | Compatible with 2007-2016 model. Available through authorized dealer |
| 44009-AK002 | OB-LINK TYPE-001 | * Discontinued. |
| 45006-AN002 | ATSC | * Discontinued. |

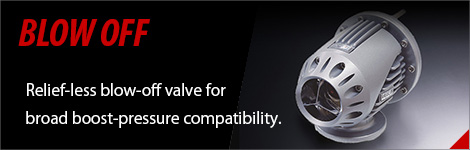

| BLOWOFF | ||
|---|---|---|
| 71008-AN027 | SUPER SQV4 (w/ CHAMBER PIPE) |
Includes Chamber pipe |
| 71008-AN029 | SUPER SQV4 (REPLACEMENT TYPE) |
Replasment type |

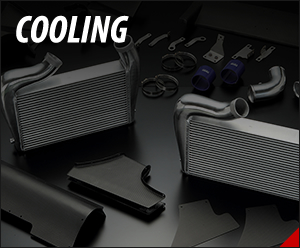

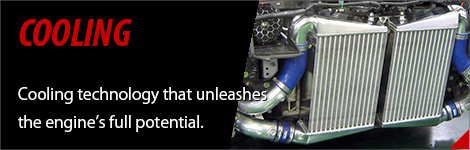

| COOLING | ||
|---|---|---|
| 13001-AN013 | INTERCOOLER KIT (w/ CARBON AIR GUIDE) |
Can't install carbon air guide for 2011 spec. Can install to a left‐hand drive car. Not checked for SPEC V. |
| 13001-AN014 | INTERCOOLER KIT (AIR GUIDE LESS) |
Can install to a carbon air guide-less and a left-hand drive car. Not checked for SPEC V. |
| 13001-AN015 | INTERCOOLER KIT (GT1000 SPEC) |
Need separate piping kit (13002-AN003) Can install to a left‐hand drive car. Not checked for SPEC V |
| 13002-AN003 | INTERCOOLER PIPING KIT |
Polished finish, requires SQV Kit 71008-AN027 (sold separately). |
| 13002-AN004 | INTERCOOLER FULL PIPING KIT |
The kit component is 13002-AN003 + SQV4kit(71008-AN027) |
| 27002-AN003 | DIFFERENTIAL OIL COOLER |
Vehicle modification is required. If stabilizer is installed, it may come in contact with a core. Compatiblity with non-HKS and non-stock muffler is not confirmed. |
| 27002-AN005 | DCT FLUID COOLER | Model year 2016-2019 |
| 27002-AN004 | DCT FLUID COOLER | Model year 2010-2016 |
| 27002-AN002 | DCT FLUID COOLER | Model year 2007-2010 |

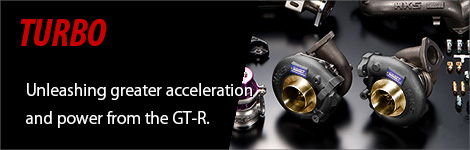

| TURBO | ||
|---|---|---|
| 11003-AN015 | GT1000+ FULL TURBINE KIT | |
| 11003-AN013 | GT1000 FULL TURBINE KIT | |
| 11003-AN014 | GT900 FULL TURBINE KIT | |
| 11003-AN011 | GTII SYMMETRY TWIN TURBO (GT800) |
GT800SPEC, Turbocharger main body x 2 |
| 11003-AN016 | GTIII-800 FULL TURBINE KIT | |
| 14001-AK027 | GTII SYMMETRY TWIN TURBO (GT1000+) |
GT1000+SPEC, Turbocharger main body x 2 |
| 14001-AK024 | GTII SYMMETRY TWIN TURBO (GT900) |
GT900SPEC, Turbocharger main body x 2 |
| 14020-AN008 | GT1000/1000+ TURBO LESS KIT | |
| 14020-AN007 | GT900 TURBO LESS KIT | |
| 14020-AN006 | GT800-1000 UPGRADE KIT | For upgrade from GT800 to GTI1000. Includes turbines, turbine brackets, cooling and oil piping, other necessary items. For use wihtout metal catalyzer. |
| 14020-AN009 | GT800-GTIII-800 UPGRADE KIT | For upgrade from GT800 to GTIII-800. Includes turbines, turbine brackets, cooling and oil piping, other necessary items. For use wihtout metal catalyzer. Shipped preset @ 88.3kpa(0.9kgf/cm2). |
| 14018-AN004 | RACING EXTENSION | |
| 14030-AN001 | ACTUATOR UPGRADE | For stock turbin ECU recalibration is required |

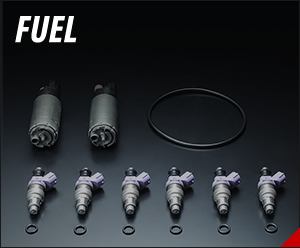

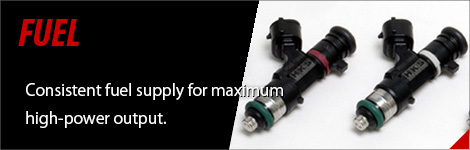

| FUEL | ||
|---|---|---|
| 14002-AN005 | INJECTOR UPGRADE KIT | 1 set per vehicle |
| 14007-AN003 | FUEL PUMP UPGRADE | include 2 peaces |
| 13008-AN001 | HIGH-FLOW SURGE TANK FULL KIT |
Surge Tank + Twin Injector Pro kit |
| 13008-AN003 | HIGH-FLOW SURGE TANK FULL KIT (UNPAINTED) |
Surge Tank(Unpainted)＋Twin Injector Pro KIT *Injectors are not included. |
| 13008-AN002 | HIGH-FLOW SURGE TANK KIT |
Surge Tank only |
| 13008-AN004 | HIGH-FLOW SURGE TANK KIT (UNPAINTED) |
Surge Tank(Unpainted) |
| 14007-AN004 | TWIN INJECTOR Pro KIT | |

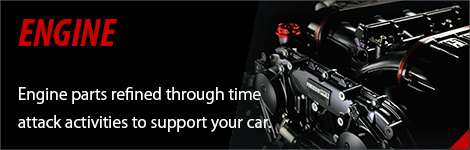

| ENGINE | ||
|---|---|---|
| 23011-AN016 | COMPLETE ENGINE VR38DETT 4.3L STEP Pro+ |
Surge tank, exhaust manifold and fuel parts are not included. Engine build with brand-new parts. |
| 23011-AN005 | COMPLETE ENGINE VR38DETT 4.3L STEP3 |
|
| 21004-AN019 | CAPACITY UPGRADE KIT (4.3L) | Billet Piston kit + H-Beam Connecting Rods (STEP3) + Billet Crankshaft. |
| 23011-AN023 | SHORT BLOCK VR38 4.3L STEP PRO+ | Including crank damper and crank keys. |
| 23011-AN015 | SHORT BLOCK VR38 4.3L STEP PRO | Including crank damper pulley and crank keys. |
| 23011-AN014 | SHORT BLOCK VR38 4.3L STEP3 | |
| 21004-AN017 | PISTON + H-BEAM CONROD SET (STEP2) |
|

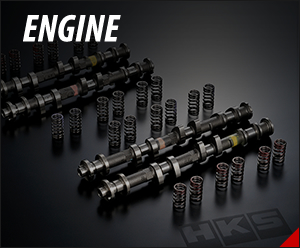

| 22002-AN038 | CAMSHAFT + VALVE SPRING SET (STEP2) |
STEP2, IN/EX CAMSHAFT + IN/EX Valve Spring Set |
| 24998-AN001 | CRANK DAMPER PULLEY | Product only for HKS CAPACITY UPGRADE KIT for VR38DETT 4.3L kit. |
| 23009-AN010 | STOPPER TYPE HEAD GASKET KIT | t=0.8、Exhaust manifold gasket included. |

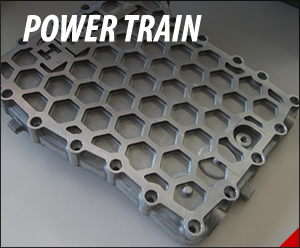

| POWER TRAIN | ||
|---|---|---|
| 27001-AN001 | TRANSMISSION OIL PAN UPGRADE |
Modification of under cover required. |

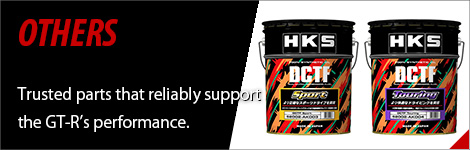

| OTHERS | ||
|---|---|---|
| 52002-AK003 | DCTF Sport (20L) | DCT fluid |
| 52002-AK004 | DCTF Touring (20L) | DCT fluid For areas with temperatures falling below -10 ℃ Sport type is recommended. |
| 52002-AK002 | DCTF-II (20L) | DCT fluid |

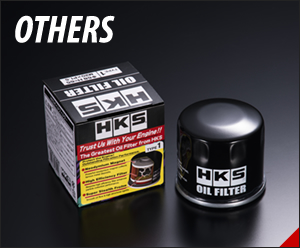

| 52009-AK005 | OIL FILTER | φ68-M20 |
| 50003-M**HL | SUPER FIRE RACING M-HL SERIES |
|
