HKS

GR 86
CUSTOMIZED PARTS

TOYOTA GR 86　
parts lineup

Code No. Product Remark
EXHAUST
32016-AT130		 Hi-Power SPEC-L II ・Not compatible with AT models
・Scheduled to apply for designated parts for particular
races in Japan for the 2024 season (as of December 2023)
32016-AF101		 Hi-Power SPEC-L II Tail cover size:φ94 L=48
32016-BT004		 Hi-Power SPEC-L
32018-AF018		 LEGAMAX Premium Only main pipe.
32018-AF019		 LEGAMAX Sports Attaching/detaching of rear bumper,
and modification of rear bumper skirt is
necessary when installing the product.
33005-AT010		 SUPER MANIFOLD
with CATALYZER GT-SPEC
33004-BT003		 STAINLESS FRONT PIPE
※With Catalyzer.
SUSPENSION
80310-AT006		 HIPERMAX R
80300-AT027		 HIPERMAX S For AT, it is recommended to raise the front ride height
by 3mm from the factory setting since the vehicle
weight is different from MT.
INTAKE
70026-AT012		 COLD AIR INTAKE FULL KIT
70026-AT010		 COLD AIR INTAKE BOX KIT
70017-AT132		 SUPER AIR FILTER
70026-AT011		 CARBON SUCTION KIT Installation time: 1.0h
70999-AT003		 AIR INTAKE DUCT Installation time: 2.0h
To be release AIR INTAKE PIPE To be developed.
ELECTRONICS
42011-AT035		 GR86/BRZ SUB CONTROL SYSTEM Both MT/AT models are compatible.
Applied B models are not confirmed to be compatible.
45009-AT015		 VAC II
Speed Limit Defencer
44009-AK001		 OB-LINK *Only for Android devices
To be release MasteryECU Under development.
ENGINE
21004-AT008		 CAPACITY UPGRADE KIT
FA24 2.5L HIGH COMP STEP1		 The kit includes; Forged piston kit,
I-beam connecting rod, and forged crankshaft.
21004-AT009		 CAPACITY UPGRADE KIT
FA24 2.5L HIGH COMP STEP2		 The kit includes; Forged piston kit,
billet I-beam connecting rod, and forged crankshaft.
23011-AT007		 SHORT BLOCK
FA24 2.5L HIGH COMP STEP1		 Crank Key included.
23011-AT008		 SHORT BLOCK
FA24 2.5L HIGH COMP STEP2		 Crank Key included. Recommended for turbocharged engine.
23002-AT004		 GROMMET TYPE HEAD GASKET
Thickness 0.8 mm		 OEM thickness t=0.6 mm
23002-AT005		 GROMMET TYPE HEAD GASKET
Thickness 1.2 mm		 OEM thickness t=0.6 mm
24996-AK053		 FINE TUNE V-BELT 6PK2037
To be release COMPLETE ENGINE To be developed.
ENGINE OIL
52001-AK154		 SUPER ZERO RACING 0w20 0W-20 4L
52001-AK148		 SUPER OIL PREMIUM 0W-20 4L
TURBO
11001-KT007		 BOLT ON TURBO This product is for overseas market only.
COOLING
15004-AT014		 OIL COOLER KIT BLACK
S-type		 ・Requires replacement of the washer tank with the one in the kit.
・Comes with adjustable intake vent.
15004-AT014		 OIL COOLER KIT S-type ・Requires replacement of the washer tank with the one in the kit.
・Comes with adjustable intake vent.
AERO
53004-AT028		 HKS BODY KIT TYPE R Base Kit
53004-AT029		 HKS BODY KIT TYPE R Full Kit (With Canards and Duck Tail Spoiler)
53004-AT030		 HKS BODY KIT TYPE R Canard
53004-AT027		 HKS BODY KIT TYPE S Spoiler set (F spoiler + Side Skirts + R spoiler)
53004-AT021		 HKS BODY KIT TYPE S Front spoiler
53004-AT023		 HKS BODY KIT TYPE S Side Skirts
53004-AT024		 HKS BODY KIT TYPE S Rear spoiler
53004-AT022		 CANARD Canard
53004-AT025		 DUCK TAIL Duck-tail
53004-AT026		 REAR WING Rear Wing
OTHERS
26010-AT002		 LA CLUTCH
70026-AT008		 DRY CARBON ENGINE COVER
70026-AT009		 DRY CARBON FUSE BOX COVER
51007-AK403		 FLOOR MAT FRONT SET For RIGHT-hand drive car.
Includes 2 pcs for the front.
51007-AK404		 FLOOR MAT FRONT/REAR SET For RIGHT-hand drive car.
Includes 4 pcs for the front and the rear.
51007-AK490		 FLOOR MAT FRONT SET LHD For LEFT-hand drive car.
51007-AK491		 FLOOR MAT Front/Rear SET LHD For LEFT-hand drive car.
51007-AK473		 HKS LUGGAGE MAT
50004-AK002		 Plug Wrench Set for FA20/24
70027-AT001		 NANO CABIN FILTER TOYOTA Type1
51999-AT001		 CARBON SHIFT KNOB D 28mm

Products to be developed is subject to change without a prior notice.

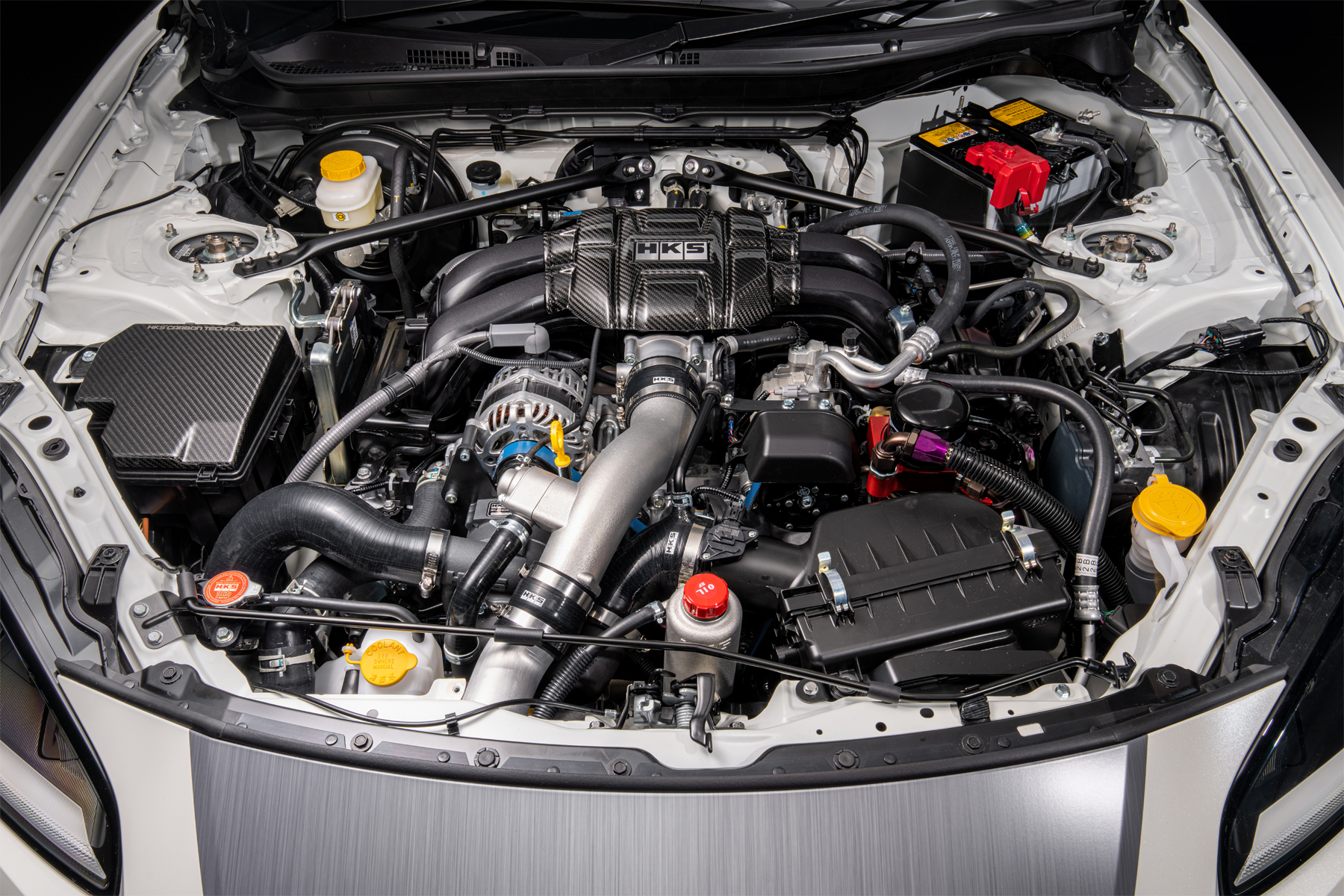

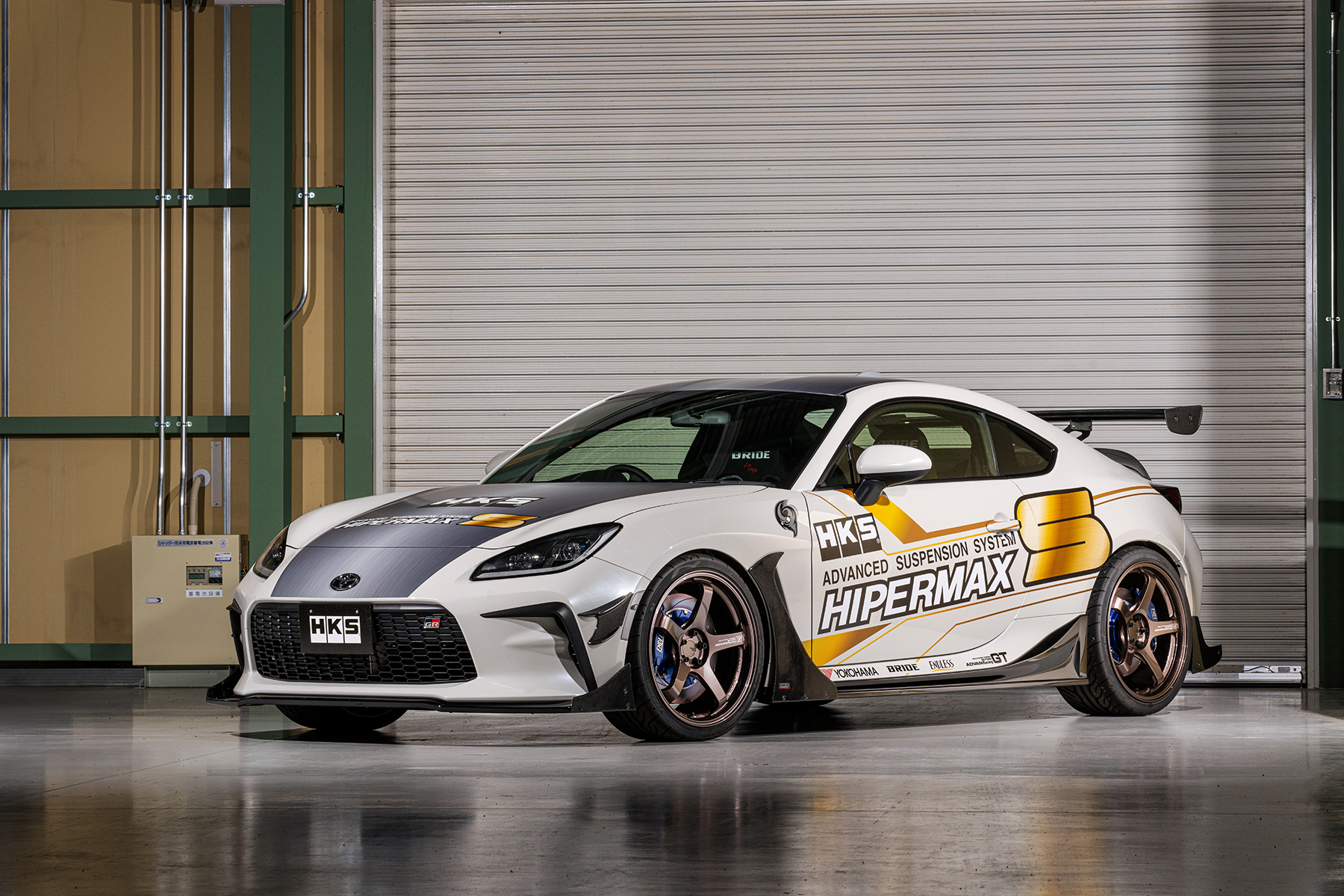

DEMO CAR

▲
